如何用AI生成精美的LPBF3D打印机零件爆炸图

提示词

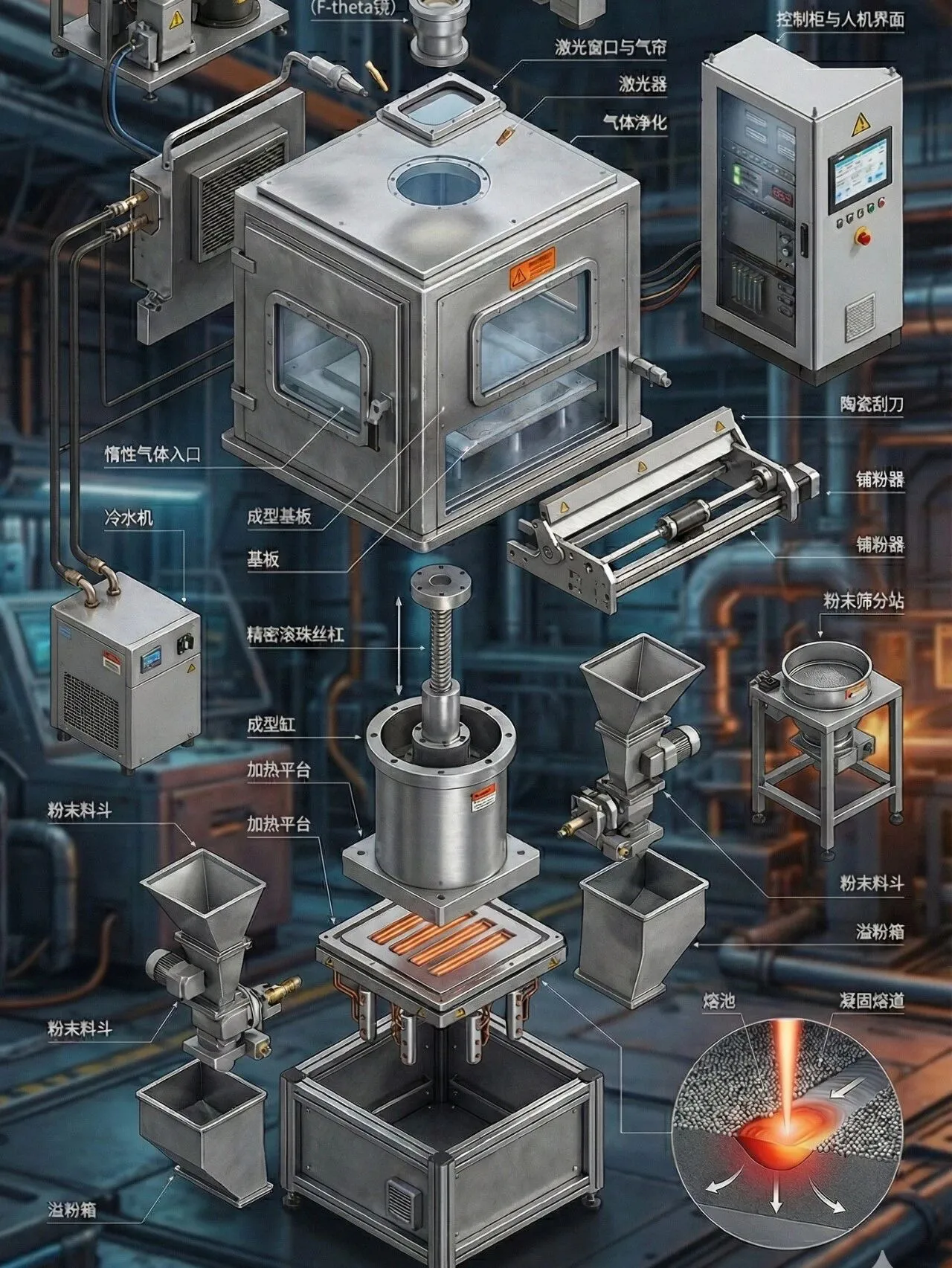

Technical exploded-view diagram of an industrial SLM powder bed fusion 3D printer, dramatic isometric cross-section, aerospace engineering documentation style on dark charcoal background.

Build chamber exploded: stainless steel sealed enclosure with viewport, argon atmosphere visualization (subtle blue tint), dual-axis recoater with ceramic blade and linear motor.

Powder system: build cylinder with ball screw actuator, powder feed hoppers, overflow bins, heated build platform with cartridge heaters and thermocouples.

Laser optical train: 500W fiber laser source (water-cooled), fiber optic cable, beam expander, dual-axis galvanometer scanner with mirrors, F-theta lens, protective laser window with gas purge.

Auxiliary: gas recirculation with HEPA filter, chiller, industrial control cabinet with HMI screen, powder sieve station.

Inset: laser-powder interaction zone, focused spot melting particles, melt pool, solidified track.

声明： 图文中涉及的机器机构及零件标注名称与位置仅供示意参考，不一定完全准确，请以专业技术资料为准。
