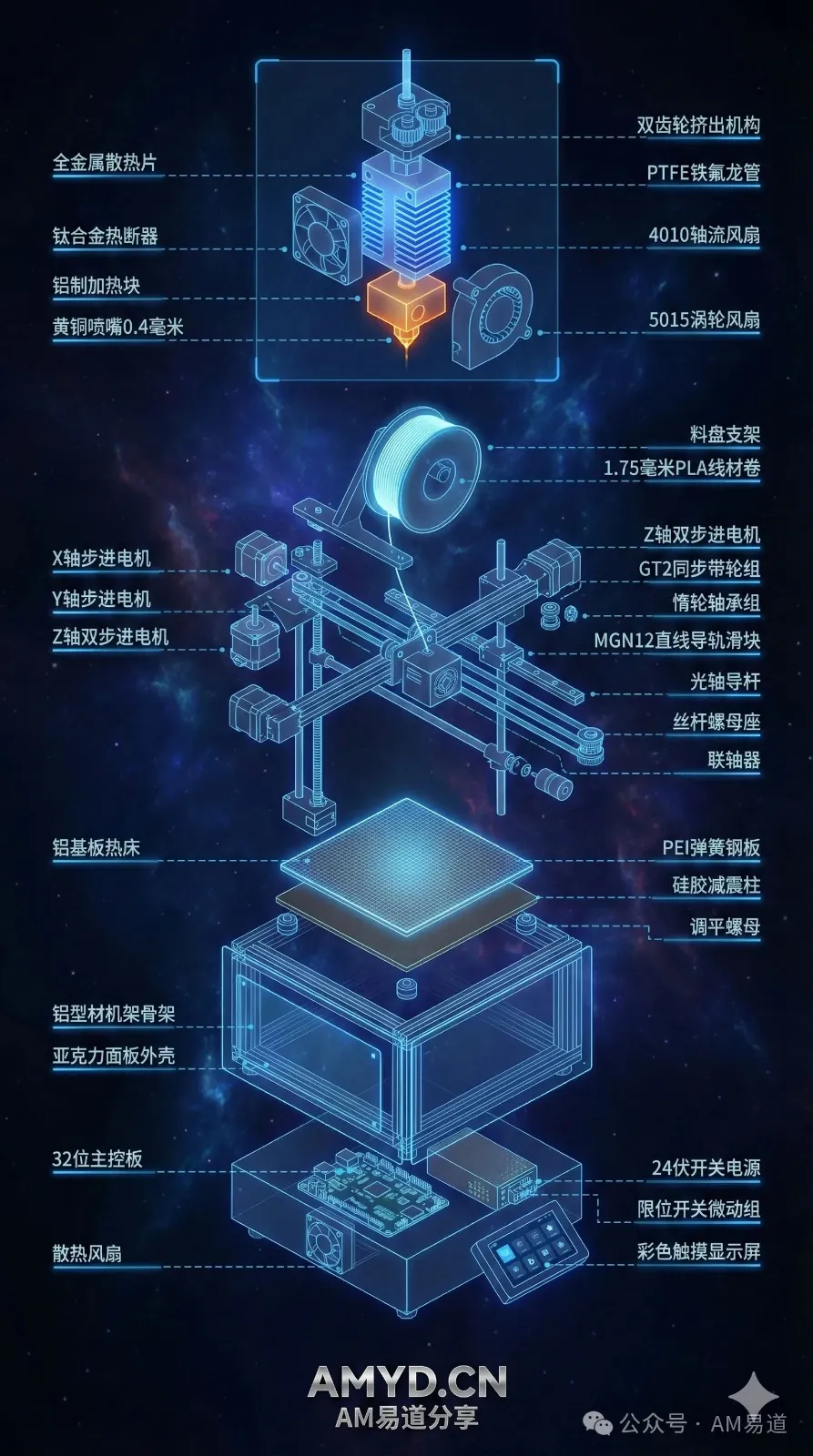

AM易道的nano-banana提示词分享：

Technical exploded-view diagram of an FDM/FFF 3D printer, isometric perspective at 45-degree angle, professional CAD-style illustration on clean white background.
Components arranged in spatial hierarchy with clear separation showing assembly order: aluminum extrusion frame structure at base, NEMA 17 stepper motors at X/Y/Z axes, dual Z-axis lead screws with brass nuts, linear rails and carriages, GT2 timing belts with idler pulleys.
Hot end assembly exploded separately: aluminum heat sink with cooling fins, titanium heat break, aluminum heater block with heating cartridge and thermistor, brass 0.4mm nozzle. Direct-drive extruder with dual-gear mechanism, PTFE tube connector.
Heated build plate with magnetic PEI sheet, Y-axis carriage, silicone bed mounts. Electronics: 32-bit control board, 24V power supply, cooling fans, LCD touchscreen, endstop switches.

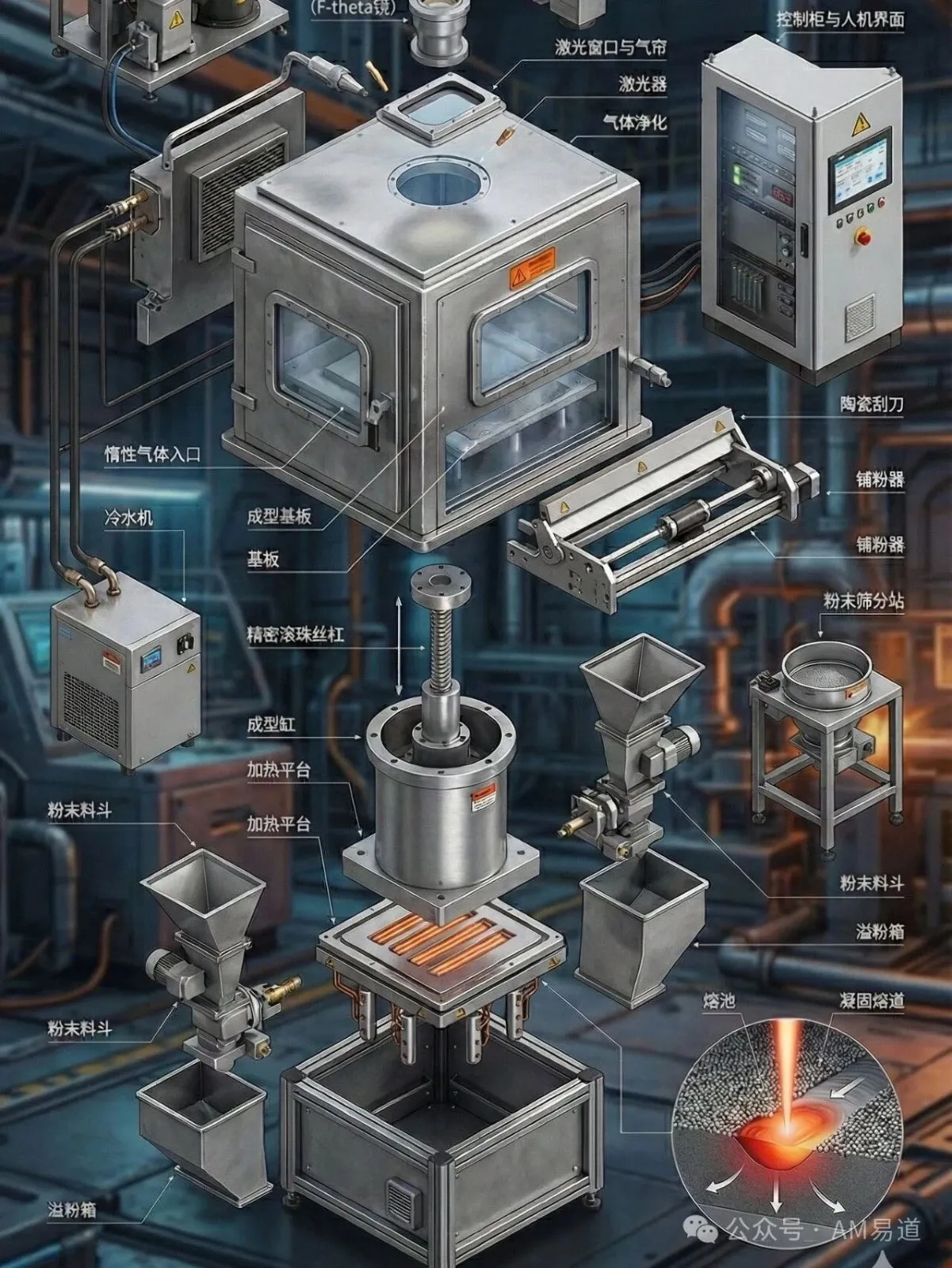

AI生成精美的LPBF3D打印机零件爆炸图提示词分享：

Technical exploded-view diagram of an industrial SLM powder bed fusion 3D printer, dramatic isometric cross-section, aerospace engineering documentation style on dark charcoal background.
Build chamber exploded: stainless steel sealed enclosure with viewport, argon atmosphere visualization (subtle blue tint), dual-axis recoater with ceramic blade and linear motor.
Powder system: build cylinder with ball screw actuator, powder feed hoppers, overflow bins, heated build platform with cartridge heaters and thermocouples.
Laser optical train: 500W fiber laser source (water-cooled), fiber optic cable, beam expander, dual-axis galvanometer scanner with mirrors, F-theta lens, protective laser window with gas purge.
Auxiliary: gas recirculation with HEPA filter, chiller, industrial control cabinet with HMI screen, powder sieve station.
Inset: laser-powder interaction zone, focused spot melting particles, melt pool, solidified track.
声明： 图文中涉及的机器机构及零件标注名称与位置仅供示意参考，不一定完全准确，请以专业技术资料为准。

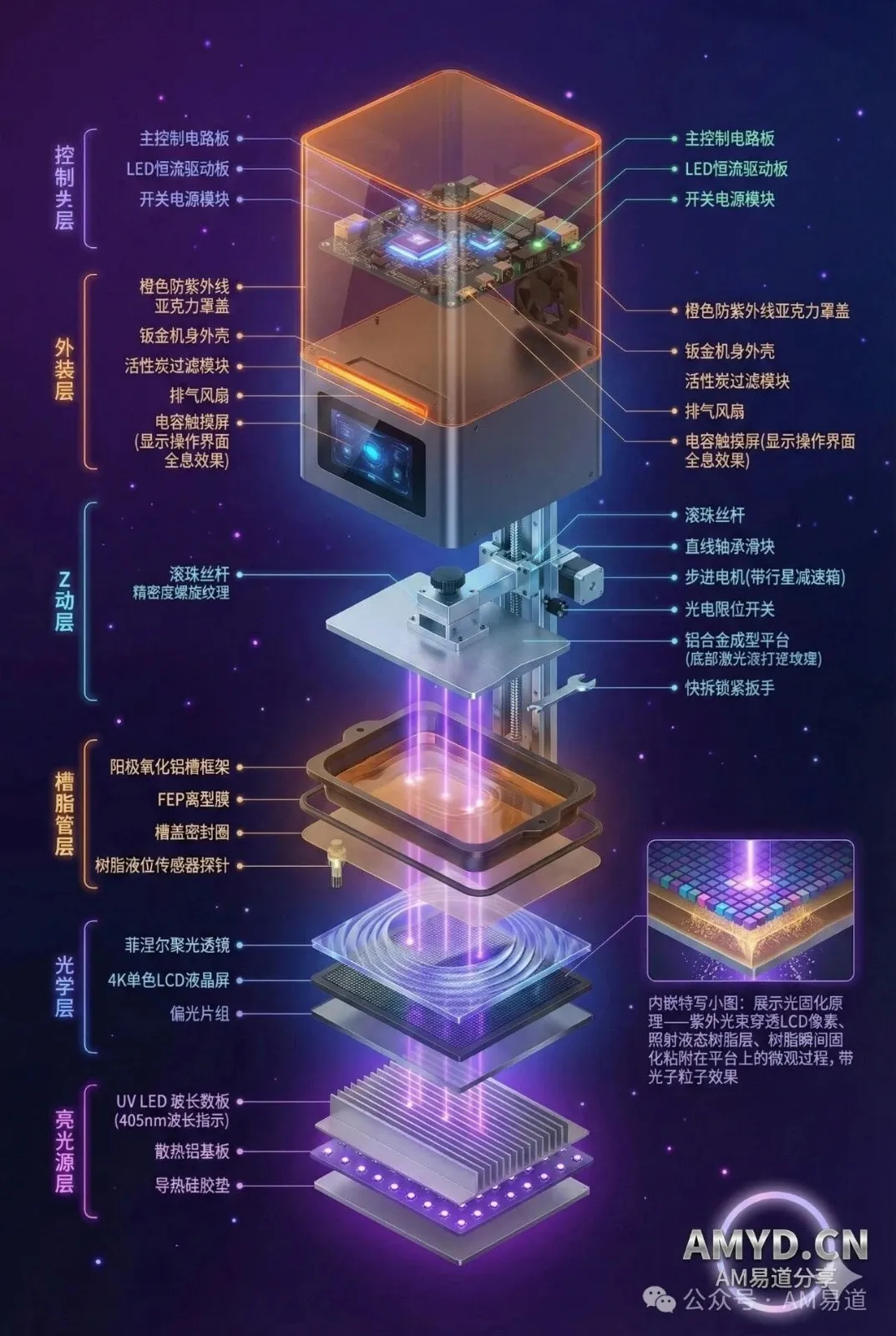

AI生成精美的光固化3D打印机零件爆炸图提示词分享：

Technical exploded-view diagram of a resin 3D printer (LCD/MSLA type), isometric cutaway perspective, professional engineering illustration on neutral light gray background. Vertical explosion from bottom to top: base housing with ventilation, UV LED light source array (405nm), Fresnel collimating lens, 4K monochrome LCD screen with pixel matrix detail, FEP film in aluminum vat frame, anodized aluminum resin tank. Upper section: ball screw Z-axis with dual linear rails, stepper motor with gearbox, CNC-machined aluminum build platform with textured surface, quick-release mechanism. Enclosure: orange UV-blocking acrylic cover, activated carbon air filter, capacitive touchscreen. Electronics: control board, LED driver, power supply. Inset detail: UV rays through LCD, liquid resin layer, cured layer on platform. All component labels in Chinese, clean numbered callouts with Chinese technical terminology

声明： 图文中涉及的机器机构及零件标注名称与位置仅供示意参考，不一定完全准确，请以专业技术资料为准。

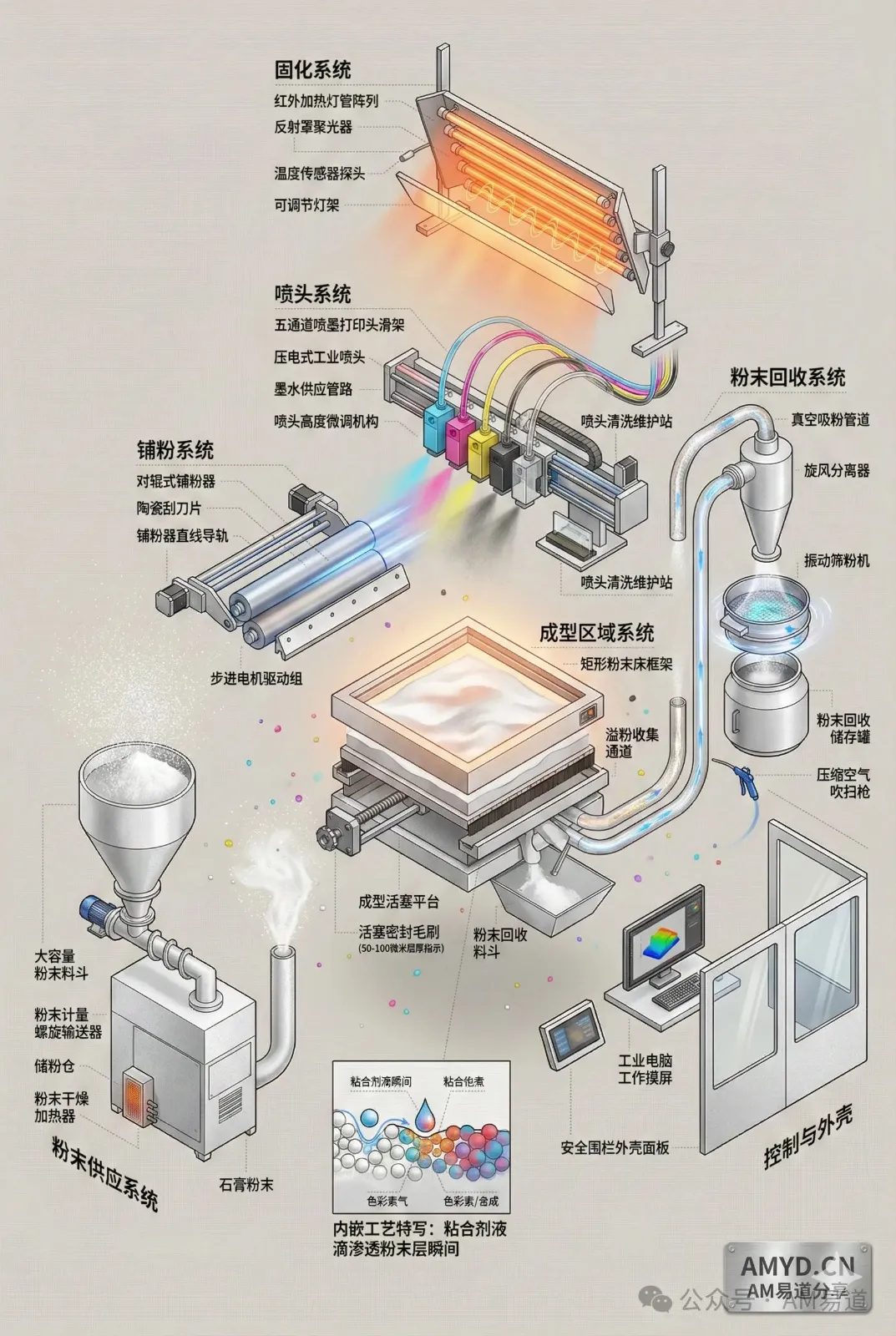

AI生成粘结剂喷射3D打印机零件爆炸图提示词分享：

Technical exploded-view diagram of a Binder Jetting 3D printer, wide isometric perspective, technical illustration on light warm gray background.
Powder delivery: large powder hopper with agitator, metering system, counter-rotating recoater roller, leveling blade.
Build area: rectangular powder bed frame, lead screw build platform/piston (50-100 micron layer), overflow powder channels to reclaim bin.
Print head gantry exploded: inkjet carriage with CMYK + binder heads (5-channel), piezoelectric heads, ink supply lines, height adjustment, cleaning/capping station.
Curing: overhead infrared heating lamp array, adjustable intensity zones.
Powder handling: external mixing station, vibrating sieve, vacuum transfer system.
Control: industrial PC workstation, touch panel, safety enclosure with viewing windows.
Inset cross-section: binder droplets penetrating powder, colorant absorption, bound vs unbound powder.
All labels in Chinese
图文中涉及的机器机构及零件标注名称与位置仅供示意参考，不完全准确，请以专业技术资料为准。
